Multi Beam Drilling & Sawing Machine

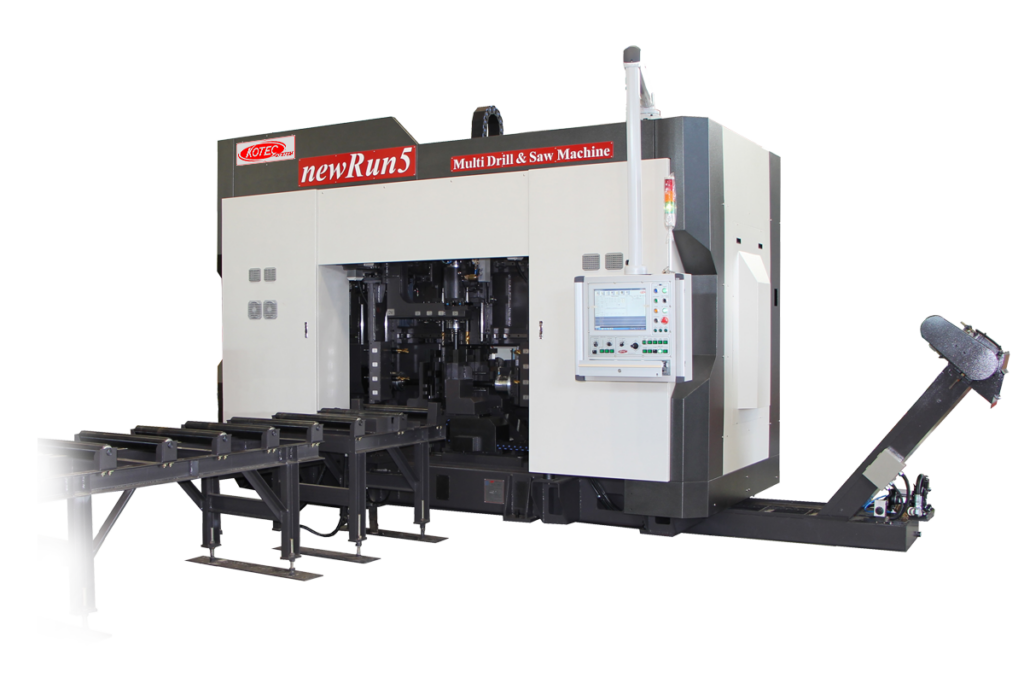

newRun5 Multi Drill & Saw Machine
Features
-
Capable of hole processing on three axis and cutting for various structural steel shapes.
-
Saves workspace and allows one operator to control drilling and cutting simultaneously.
-
Equipped with a high-power motor for high-speed hole processing.
-
High-speed cutting control using a servo motor.
-
Fast and precise material feeding operations using a carriage.
-
Adopts an easy and simple method for processing data input. (Option: NC1, DXF file conversion program)
Request a Quote
Specifications
| MODEL | newPrime 13 |
|---|---|
| Processing capacity | |
| H | 100×50 – 500×300 mm |
| n | 75×40 – 380×100 mm |
| L | 65×65 – 300×300 mm |
| O | 50×50 – 300×300 mm |
| Carriage stroke | 13 m (Standard) |
| Drill bit capacity | Oil Hole, Tungsten Carbide Drill: Ø12–Ø32 |
| Sawing Capacity | 500×300 mm |
| Blade Size (W×L) | 41×1.3×6,000 mm |
| Dimension (W×L×H) | 4,250×1,950×2,900 mm (without Carriage) |
| Weight | 7,600 kg |
NOTE: Specifications are subject to change for quality improvement.
