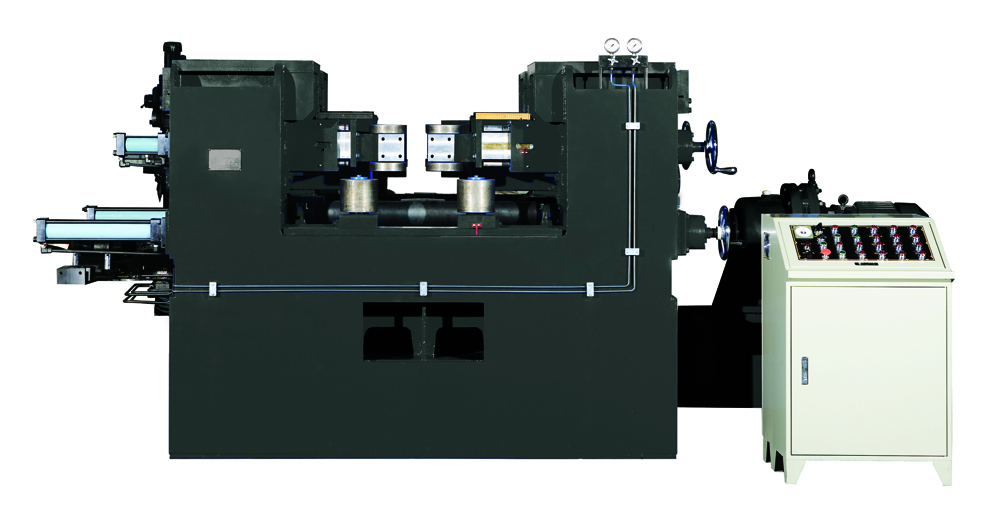

B-H STRAIGHTENING MACHINE
B-H STRAIGHTENING MACHINE
Features
-
Deformed flange straightening.
-
Designed for durable operation.
-
Fast operation, increased productivity.
Request a Quote
Specifications
| MODEL | KTA-7010 | KTA-4060 |
|---|---|---|
| Flange capacity | Max. 1,000mm × 70t Min. 200mm × 16t | Max. 600mm × 45t Min. 200mm × 12t |
| Web capacity | Min. 312mm | Min. 300mm |
| Straightening speed | 8 m/min | 6.5 m/min |
| Straightening power | 120 ton | 80 ton |
| Dimension (W×L×H) | 4,500 × 1,850 × 1,900 mm | 3,150 × 1,285 × 1,500 mm |
| Weight | 13,000 kg | 8,000 kg |
NOTE: Specifications are subject to change for quality improvement.
