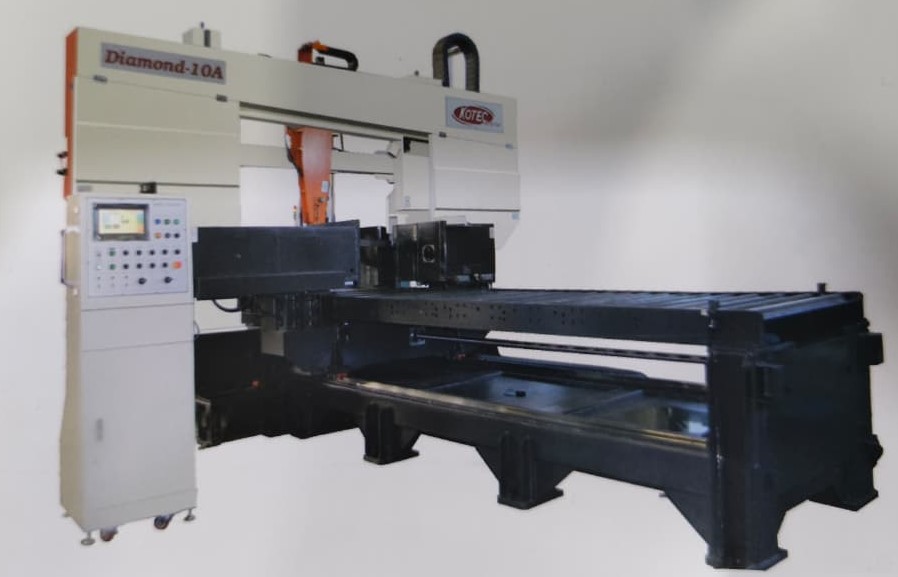

Band Sawing Machine (Bundle)
Features
-
Specialized design for easy cutting of bundles and raw materials.
-
Automatic cutting speed control system and cutting end point.
-
Linear Motion (LM) guide for stable saw blade feed.
-
Improved cutting speed controlled by a servo motor.
Request a Quote
Specifications
| Model | DIAMOND-10A (Bundle) | DIAMOND-7A |
|---|---|---|
| Capacity | 90° 1,000 × 1,000 mm | 90° 700 × 500 mm |
| Blade Speed | 20-90 m/min | 20-90 m/min |
| Saw Blade Size | 67 × 1.6 × 9,920 mm | 54 × 1.6 × 7,150 mm |
| Feeding Stroke | IN: 3,000 mm / OUT: 3,000 mm | IN: 800 mm / OUT: 200 mm |
| Dimensions (W×L×H) | 4,520 × 1,440 × 3,420 mm | 3,475 × 2,255 × 2,640 mm |
| Weight | 8,000 kg | 7,000 kg |
NOTE: Specifications are subject to change for quality improvement.
