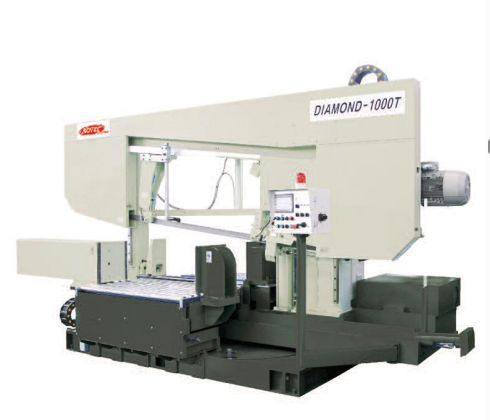

Band Sawing Machine (Hydraulic control)
Features
-
Capable of cutting up to a maximum of 45° (digitally controlled angle).
-
Stable cutting using LM (Linear Motion) guides.
-
Automatic control of cutting speed and end point.
Request a Quote
Specifications
| MODEL | DIAMOND–1300T | DIAMOND–1000T | DIAMOND–700T |
|---|---|---|---|
| Round(Ø) | Ø600 | Ø600 | Ø400 / Ø380 |
| Capacity | Square (W×H) 90°: 1,300×600mm 45°: 750×600mm | Square (W×H) 90°: 1,000×600mm 45°: 600×600mm | Square (W×H) 90°: 700×400mm 45°: 380×400mm |
| Bundle (W×H) 90°: 1,300×430mm 45°: 750×430mm | Bundle (W×H) 90°: 1,000×430mm 45°: 600×430mm | Bundle (W×H) 90°: 700×300mm 45°: 380×300mm | |
| Saw Blade | |||
| Blade speed | 20–90 m/min | 20–90 m/min | 20–90 m/min |
| Blade size (W×T×L) | 67×1.6×9,700mm | 54×1.6×8,800mm | 41×1.3×5,790mm |
| Feeding stroke | 320mm | 320mm | N/A |
| Dimension (W×L×H) | 5,400×2,560×2,600mm | 4,800×2,250×2,550mm | 2,850×1,850×2,400mm |
| Weight | 8,750kg | 6,850kg | 4,500kg |
NOTE: Specifications are subject to change for quality improvement.
