ELEMENT L - Productivity redefined
Leap in performance in laser technology!
Whether it is rapidly increasing laser powers, different fiber types or even new cutting gases: Today's laser machines must be able to follow current trends. Innovation is needed as applications must become more effective and transparent. In addition, the increasing shortage of skilled workers is pushing for plants to become more self-sufficient. One machine operator alone has to be able to supervise several machines.
Automation of nozzle change material supply and removal and continuous data exchange or reconciliation across the entire production flow are the prerequisites that were at the forefront of the ELEMENT L's development.

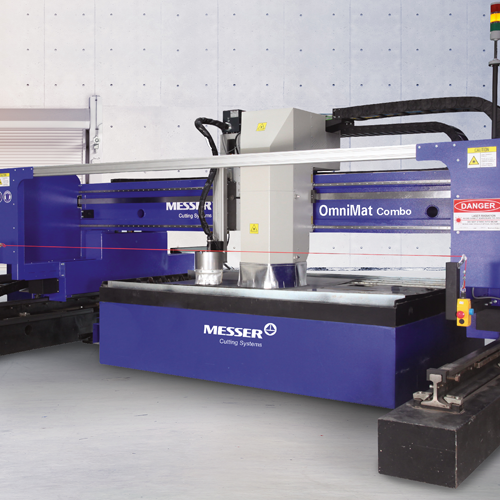

OmniMat Combo
OmniMat Combo combines the power of Plasma and the precision of Laser.
It is a large size CNC laser cutting machine with a heavy-duty structure and precise machine guiding profile and provides high cutting accuracy and precision contouring suitable for a wide field of applications and complicated cutting jobs.
The plasma / fiber laser combination cutting on the same part will increase productivity by allowing critical internal features to be cut with the fiber laser and external features to be cut with the plasma torch without moving the part to another piece of equipment.
YOUR ADVANTAGES
- Robust design and designed for optimum dynamic performance.
- Linear guides on the bridge give smooth and precise cuts
- High performance AC drives for speeds up to 35 m/min
- Low investment cost
- Low running cost
- Increased productive times through highest acceleration and positioning speeds
- Reliable automatic height sensing
- Reduction of time between cuts through highest acceleration
- The system is characterized by its high durability
OmniMat Fiber
OmniMat Fiber is an ideal machine for laser cutting in large working areas. It is a large size CNC laser cutting machine with a heavy-duty structure and precise machine guiding profile and provides high cutting accuracy and precision contouring suitable for a wide field of applications and complicated cutting jobs. The system is now widely used in industries such as heavy industry, engineering equipment, etc.
YOUR ADVANTAGES
- Robust design and designed for optimum dynamic performance.
- Linear guides on the bridge give smooth and precise cuts
- High performance AC drives for speeds up to 50 m/min
- Low investment cost
- Low running cost
- Increased productive times through highest acceleration and positioning speeds
- Reliable automatic height sensing
- Reduction of time between cuts through highest acceleration
- The system is characterized by its high durability
FiberLight
Ergonomically designed, compact and robust FiberLight is the choice for quality cutting, in low and mid power laser application. Predefined cutting process parameters for wide range of materials helps to achieve quality cut in minimum possible time.
Simple and user-friendly Global Connect HMI control helps operators to produce high-quality products after a short-term training.
Laser cutting provides you a large range of advantages: High accuracy, low heat influence and quality cut parts.
The fibre laser, additionally, offers high efficiency and low maintenance.
YOUR ADVANTAGES
- The new Global Connect controller with Job concept.
- Sturdy & optimized structure for Smooth operation and quality cutting.
- Robust beam with LM guides to ensure superior cut quality.
- Compact in design and fully concealed cables & hoses.
- Tested and verified standard database based on local materials.
- Advanced cutting functions such as Jump function, Scan cut & Zip cuts ensures the fastest cutting time.
- Machine is available 3 variants: flexible to customer needs.
- Max. Simultaneous: 112m/min
- Max. acceleration: 0.8g
- Remote service, online diagnosis and trouble shooting effectively reduce downtime and save extra service expenses.
FiberBlade V
FiberBlade V, the new fifth generation high speed laser cutting machine, benefiting from Messer’s high speed cutting technology, can achieve top level productivity in the industry. It is simple and user-friendly HMI helps operator to produce high quality products after short-term training.
- What Thickness can be cut - 0.5 mm – 35 mm depending on Laser power
- What Laser power options are available- 1 kw* to 15 kw
- What material can be cut - MS, SS, Aluminium, Copper, Brass
YOUR ADVANTAGES
- New generation of Global Connect CNC system
- Messer's proprietary technology, based on high-speed cutting capabilities developed by high-dynamic platforms, greatly increases production capacity
- Ultra jump function shortens positioning time, improves processing efficiency
- Standard features: auto alignment, auto focusing and auto gas pressure adjustment
- Datalog function to generate production reports automatically
- Tested and verified standard database based on local materials
- The verified high quality sharp-angle cutting technology based on complicated layouts from customer site.
- Stable processing quality benefitting from lens condition monitoring technology
- Preventive maintenance tips and warning function reducing downtime
- Remote service, online diagnosis and trouble shooting, effectively reducing downtime and saving extra-service expenses.
- Positioning accuracy: ±0.03 mm/m
- Max. simultaneous:169 m/min
- Max. acceleration: 1.5 g
FiberBlade V
FiberBlade V, the new fifth generation high speed laser cutting machine, benefiting from Messer’s high speed cutting technology, can achieve top level productivity in the industry. It is simple and user-friendly HMI helps operator to produce high quality products after short-term training.
- What Thickness can be cut - 0.5 mm – 35 mm depending on Laser power
- What Laser power options are available- 1 kw* to 15 kw
- What material can be cut - MS, SS, Aluminium, Copper, Brass
YOUR ADVANTAGES
- New generation of Global Connect CNC system
- Messer's proprietary technology, based on high-speed cutting capabilities developed by high-dynamic platforms, greatly increases production capacity
- Ultra jump function shortens positioning time, improves processing efficiency
- Standard features: auto alignment, auto focusing and auto gas pressure adjustment
- Datalog function to generate production reports automatically
- Tested and verified standard database based on local materials
- The verified high quality sharp-angle cutting technology based on complicated layouts from customer site.
- Stable processing quality benefitting from lens condition monitoring technology
- Preventive maintenance tips and warning function reducing downtime
- Remote service, online diagnosis and trouble shooting, effectively reducing downtime and saving extra-service expenses.
- Positioning accuracy: ±0.03 mm/m
- Max. simultaneous:169 m/min
- Max. acceleration: 1.5 g
