ProfiTherm – Increased profitability

Profitherm is a robust and precise CNC cutting machine which can be applied from small workshops to big factories. Its optimized construction with rails in the X direction and Linear guides in the transverse direction ensures heavy duty oxyfuel and plasma cutting.

The machine allows simultaneous cuts with up to 4 torches.

Patented ALFA torch for oxy-fuel cutting, comes with quick nozzle change for higher productivity.

Machine can be used with air and oxygen plasmas of renowned plasma suppliers.

Key Features

• Positioning speed 12 m/min helps to reduce cycle time.
• Digital servo AC drives with precision gear boxes in X & Y axis.
• Robust beam with LM guides to ensure superior cut quality.
• Compact in design and fully concealed cables & hoses.
• Automatic gas regulation system – Eliminates manual intervention for setting the gas flow.
• Symmetric wheel housing design & parking space for unused torches increases the cutting width.
• Reliable height control for longer nozzle life and high-quality cuts.

MULTIPLE COMBINATIONS FOR THERMAL CUTTING NEEDS

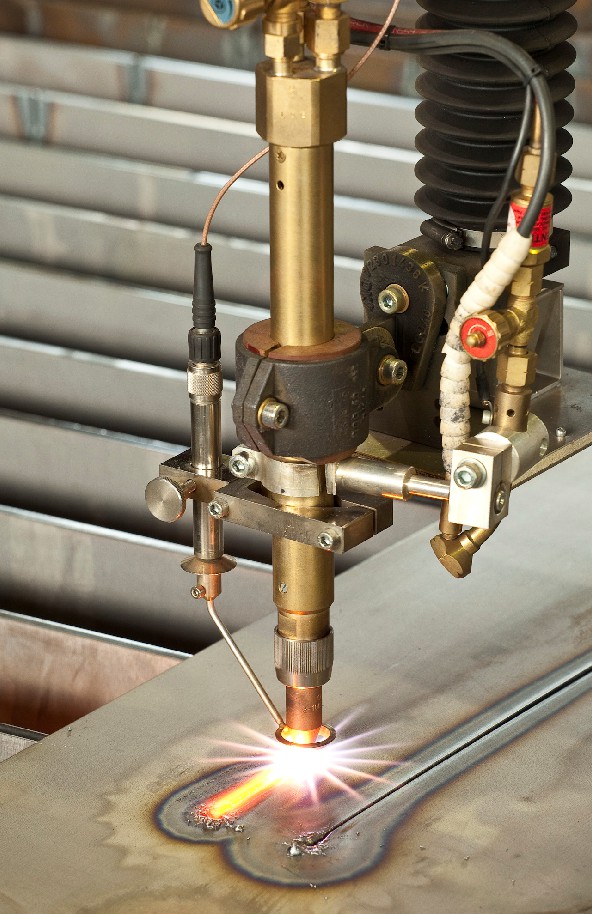

Oxyfuel machine torch ALFA

Our ALFA torch offers numerous sophisticated features and options, taking thermal cutting to a completely new level. The torch nozzle, for example, can be replaced without a tool. As a result, misalignment of the torch is prevented, resulting in drastically reduced set-up times. The cap can simply be unscrewed to expose the nozzles, so they can easily be checked or replaced.

Moreover, material can be utilised in a more efficient way, as the ALFA is able to cut effectively up to and along the edge of the sheet.

Furthermore, the torch integrates numerous functions, which on other systems are attached to the outside, such as height sensing. Their full integration eliminates the need for additional cables and sensing rings – and having to exchange the latter to suit different material thicknesses or to replace them due to wear.

• Quick nozzle change without tools and without a misalignment of the torch, resulting in significantly reduced idle times
• Improved material utilisation through optimal sensing and cutting, also along the edges
• Fully integrated magnetic height sensing

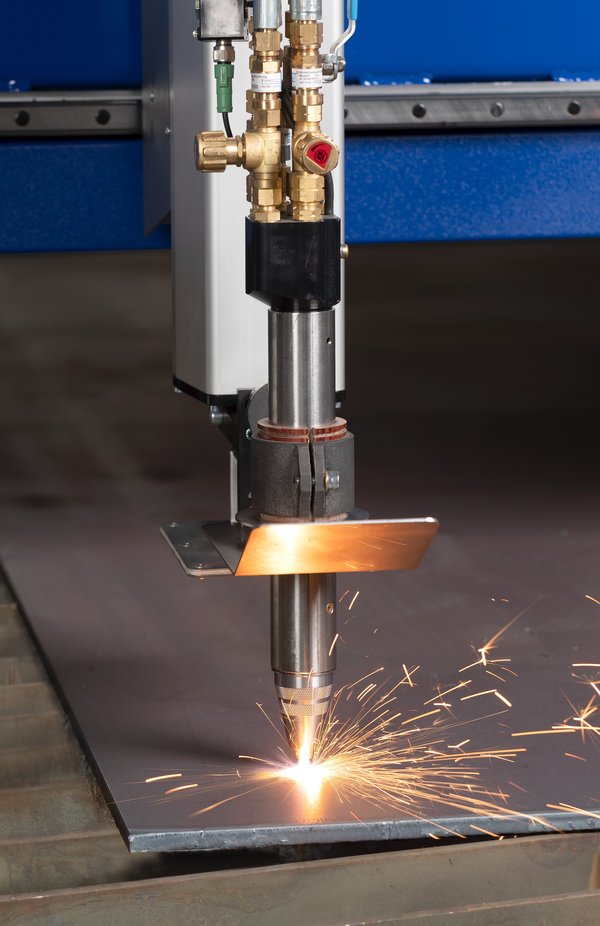

Oxyfuel machine torch MS932

The MS 932 is very versatile. It can be used with all fuel gases and is very safe to operate. The torch design prevents flashbacks even when piercing thick materials.

The torch nozzle is changed without tools, eliminating the possibility of misaligning the torch, which drastically reduces set-up time. Once the cap is unscrewed, the nozzles are free and can be easily replaced or checked

• Low oxygen consumption reduces costs without loss of cutting quality or cutting speed
• Guaranteed quality through 100% nozzle test
• No tools required for nozzle change, thus greatly reduced set-up times
• Patented quick-change nozzle system
• Higher cutting speed and longer nozzle service life compared to conventional standard nozzles with good cutting quality in accordance with quality class EN ISO 9013
• No upper edge melting and slag bead formation due to special heating slot arrangement
• Uniform nozzle heating caps for all types of gas

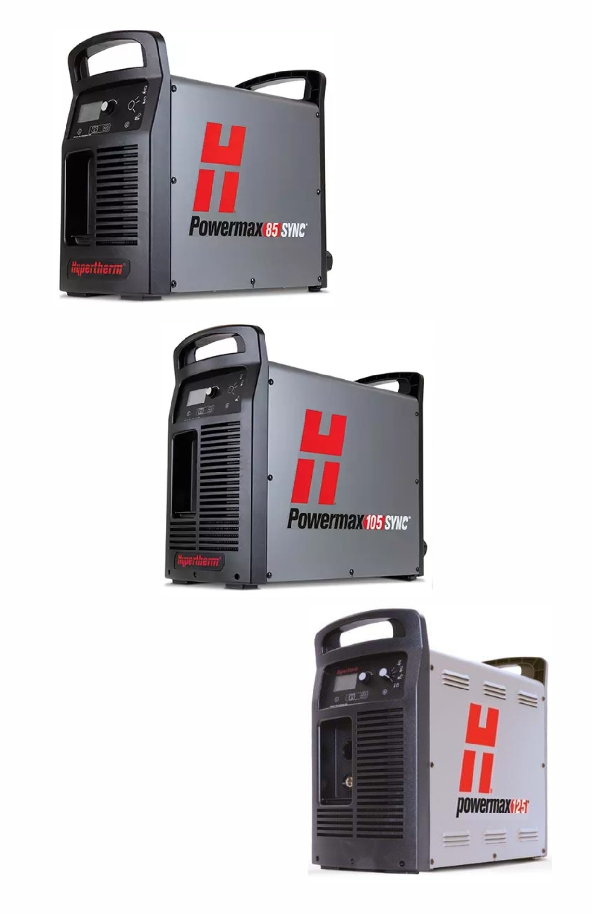

Air Plasma PMX Series

Hypertherms Industry leading Power max systems allow extensive automated metal cutting.

Powermax 85 SYNC, Powermax 105 SYNC, Powermax125 SYNC are widely used in Profitherm machines.

• Easy to use
• Minimum operation cost
• Simplified system operation minimizes costs spent on training and troubleshooting.
• Reductions to downtime during consumable change-outs and elimination of costs associated with premature disposal of consumable parts.
• Maximize performance and improved quality over life compared to standard consumables.
• Engineered for rugged, industrial environments.

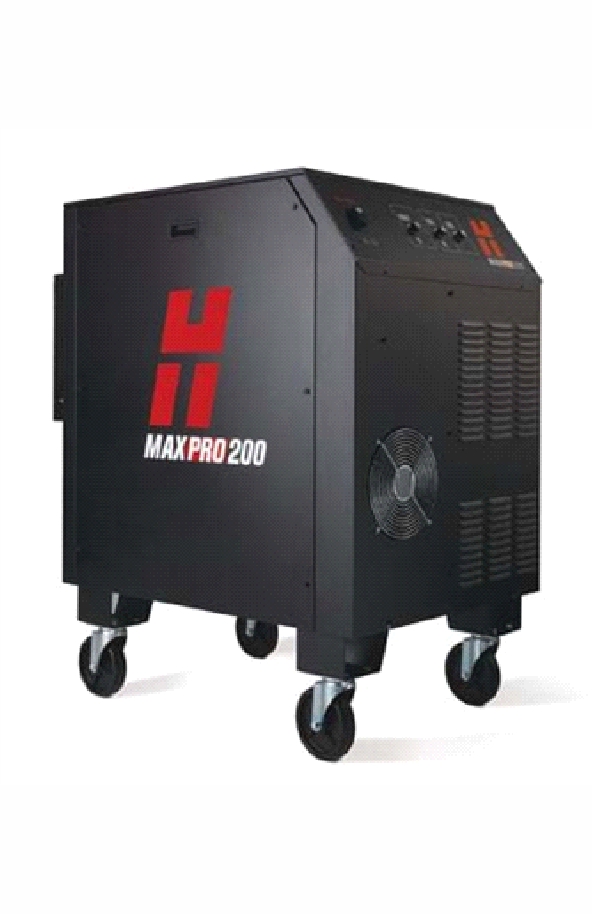

MAXPRO200 Plasma System

The MAXPRO200® LongLife® plasma cutting system is engineered for heavy-duty, high capacity automated cutting applications. The easy-to-use system operates with either air, oxygen, or nitrogen plasma gas, and combines fast cutting speeds and quick process changes to maximize productivity. Advanced Hypertherm consumable designs improve cut consistency and significantly increase consumable life to lower your cost per part.

• Fastest cut speeds in its class produce more finished parts per hour
• Engineered with 100% duty cycle for the most demanding production environments.
• Superior cut quality and consistency minimize the need for costly secondary operations
• Optimized cutting parameters are automatically set and controlled in one step to deliver consistent results without operator intervention

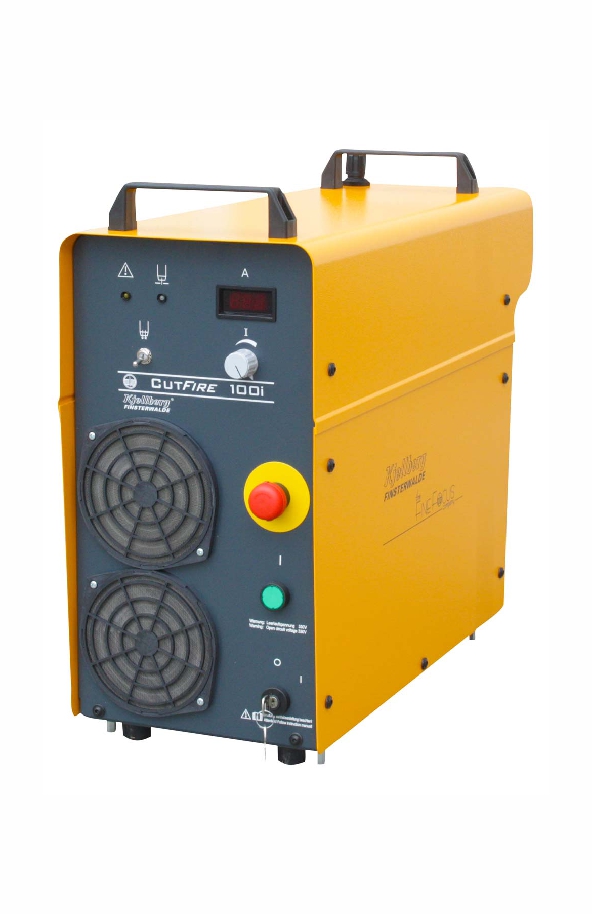

CutFire 100i Kjellberg

The CutFire 100i is a powerful plasma unit with air as plasma gas. It offers a wide range of applications at low investment costs. It is equipped with an adjusted inverter technology and is one of the few air-cooled systems on the market that offers a duty cycle of 100%.

• The cooling and protective effect of the swirl gas ensures higher cutting speeds and an increased lifetime of the consumables.
• The CutFire 100i is ideally suited for cutting thin sheets in ventilation and switch cabinet construction, in metal construction and many other craftsmen businesses, industrial and production plants.
