Meet the newest member of our
best-selling line of Powermax® portable plasma

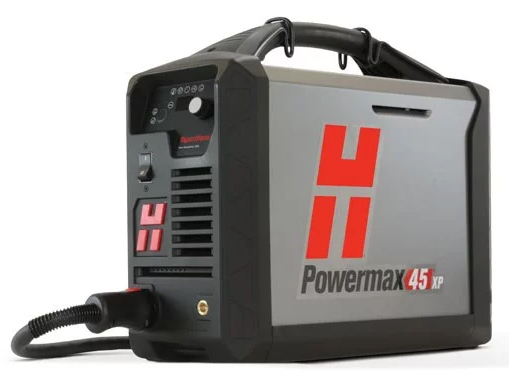

systems. The Hypertherm Powermax45 XP
Plasma System delivers increased
cut capacity – up to 16 mm (5/8”) metal – as
well as faster cut speeds, and automatic gas
adjustment for quick, simple setup and

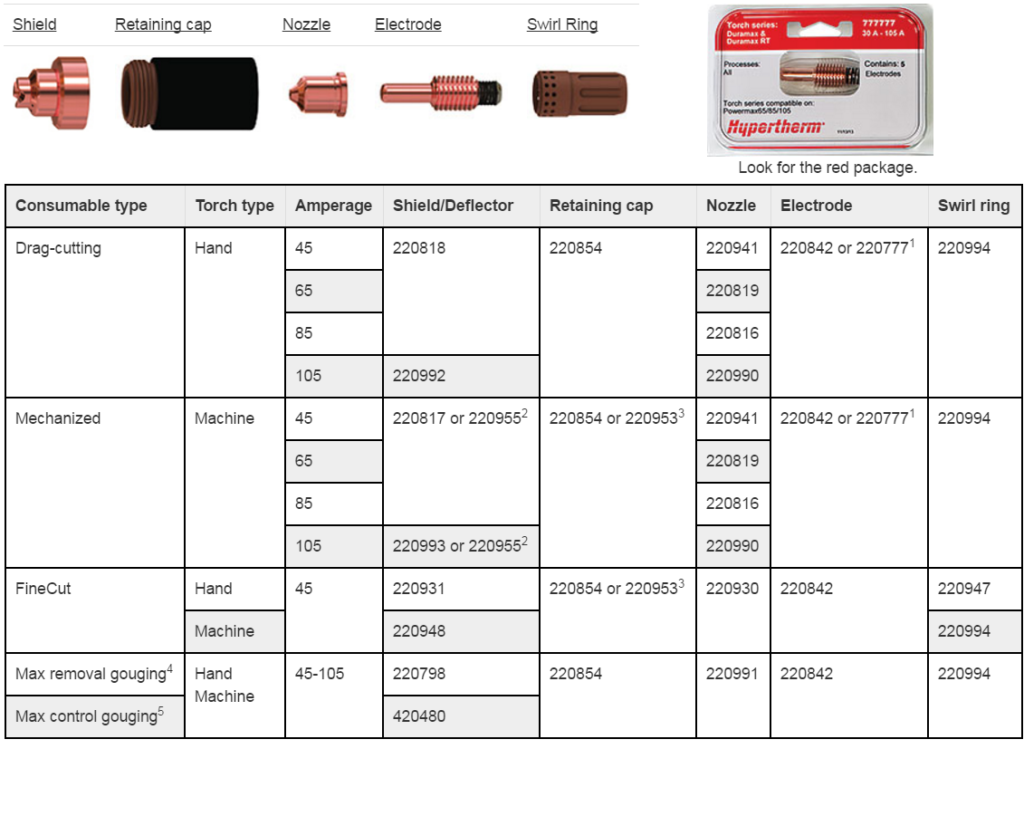

operation. New Duramax® Lock torches support
handheld and mechanized cutting of a wider range
of metal thicknesses, along with precision
gouging such as spot weld removal, and marking
capabilities.
Hypertherm Power
Max 45 XP Plasma System Technical
Data
| Capacity
|
Thickness |
Cut speed |
| |
Cutting |
| Recommended |
16 mm (5/8") 22 mm (7/8")
|
500 mm/min (20 ipm) 250
mm/min (10 ipm) |
| Severance (hand cutting) |
29 mm (1-1/8") |
125 mm/min (5 ipm) |
| Pierce* |
12 mm (1/2") |
|
* Pierce rating for handheld use or with
automatic torch height control
| Capacity
|
Metal removal rate |
Groove profile |
| |
Gouging |
| Typical gouge |
3,4 kg (7.5 lbs.) per hour |
3,2 mm (.12") D x 6,8 mm (.26")
W |
|
