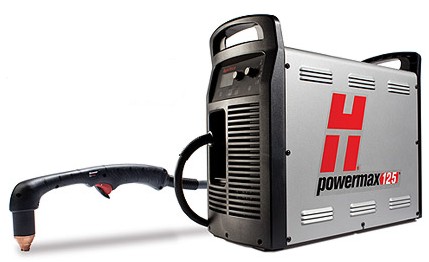

Hypertherm POWERMAX125

Hypertherm POWERMAX125

With the maximum power and performance for air plasma, the new Hypertherm Powermax125 cuts fast and thick. A 100% duty cycle, a 1" (25 mm) mechanized pierce capability, and a gouging metal removal rate of 27.6 lbs/hr (12.52 kg/hr) make the Powermax125 the tool for any industrial cutting and gouging job.

New Duramax Hyamp torch styles provide versatility for hand cutting, portable automation, x-y table cutting, and robotic cutting and gouging. Smart Sense™ technology automatically adjusts the gas pressure according to cutting mode and torch lead length. It also detects electrode end-of-life, automatically turning off power to the torch to prevent potential damage to other parts or the workpiece.


Hypertherm POWER MAX 125 Technical Data

Capacity

Thickness

Cut speed



Cutting

Recommended

38 mm (1-1/2")

457 mm/min (18 ipm)



44 mm (1-3/4")

250 mm/min (10 ipm)

Severance (hand cutting)

57 mm (2-1/4")

125 mm/min (5 ipm)

Pierce*

25 mm (1")



* Pierce rating for handheld use or with automatic torch height control

 Capacity

Metal removal rate

Groove profile*



Gouging

Typical gouge

12,52 kg/hr
(27.6 lbs/hr)

4,3 mm-7,9 mm D x 6,1 mm-9,9 mm W
(0.17-0.31" D x 0.24–0.39" W)

* Actual groove profile varies with torch angle, arc stretch, and technique
